CADEX BATTERY TESTING SYSTEM

C8000 BATTERY TESTING SYSTEM

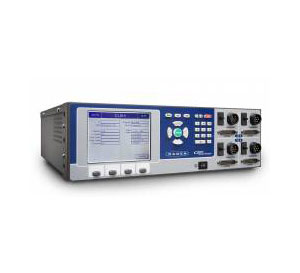

By all imagination, the Cadex C8000 may well be the  most complete and affordable battery testing system available today.

The Cadex C8000 stands in a class by itself in flexibility and affordable price. Test SMBus batteries, monitor cell balance and capture load signatures to observe batteries with a unique load protocol. Add a thermal chamber, an external load bank, a safety circuit and alarm to form a command center and you begin realizing the unique qualities of this fine battery testing system.

FOR ORDERS AND INFORMATION PLEASE CONTACT US AT:

+972-9-7633000

Inquire and Order
  • 4 independent digital drivers for maximum flexibility
  • 1.2V – 36V, 10A charge and discharge per channel
  • 100W per channel on charge; 80W on single channel discharge, 160W dual channel, and 2400W with external load bank

MAIN FEATURES

SEPARATE BATTERY AND I/O PORTS

Each channel features a Battery Port and I/O Port for individual programming. The system includes:

  • Positive/negative input; 4-wire Kelvin
  • Analog thermistor input
  • 4 differential analog voltage inputs
  • 2 analog outputs
  • 4 input/output control for switching
  • SMBus, clock, data for smart packs

LABORATORY SYSTEM

Use the Cadex C8000 as command center to control these accessories:

  • Thermal chamber
  • Digital load bank
  • Heating element
  • Pressure gauge
  • Cell monitoring
  • Safety circuit
  • Alarms

MONITORING INDIVIDUAL CELLS

Four differential (floating) analog inputs enable voltage check of up to 5 cells; 4 direct and one by voltage extraction.

LOAD CAPTURE

With the Load Capture Unit, the Cadex C8000 takes load signatures and plays them back as a simulated load protocol to check battery runtime in the lab. Check the battery runtime with different load demands and battery types. The Cadex C8000 goes to 10A; an external load bank brings this up to 240A.

EXTERNAL LOAD BANK

For higher load currents on discharge, you can connect the Cadex C8000 to a designated external load bank, enabling loads of up to 2,400 watts and 48 volts. (Supported on one channel only).

DUAL POWER PORT CABLE

The Dual Power Port Cable ties two channels together to double the current from 10A to up to 20A. Applicable on discharge only.

SMART BATTERY TESTING

The Cadex C8000 reads and displays register settings of an SMBus battery to assists in system design, verify function and troubleshoot anomalies.

  • Assists in the design of smart batteries
  • Checks cell voltages to verify proper function
  • Reads Full Charge Capacity

LOAD TEST

The Cadex C8000 allows testing batteries under GSM, CDMA or other discharge protocols. Programming is in 50μs intervals and the minimum setting is 500μs.

Runtime discharges a battery under three load conditions. You can set time duration and load levels. The cycle repeats itself until the capacity drops to the target setting. PC-BatteryLab™ provides charts and stores the results.

LIFECYCLE TEST

The program verifies battery endurance by counting the cycles until the capacity drops to the target capacity. This helps select a battery and do incoming inspections to ensure consistent quality. The program is fully automated; PC-BatteryLab™ displays and stores the test.
